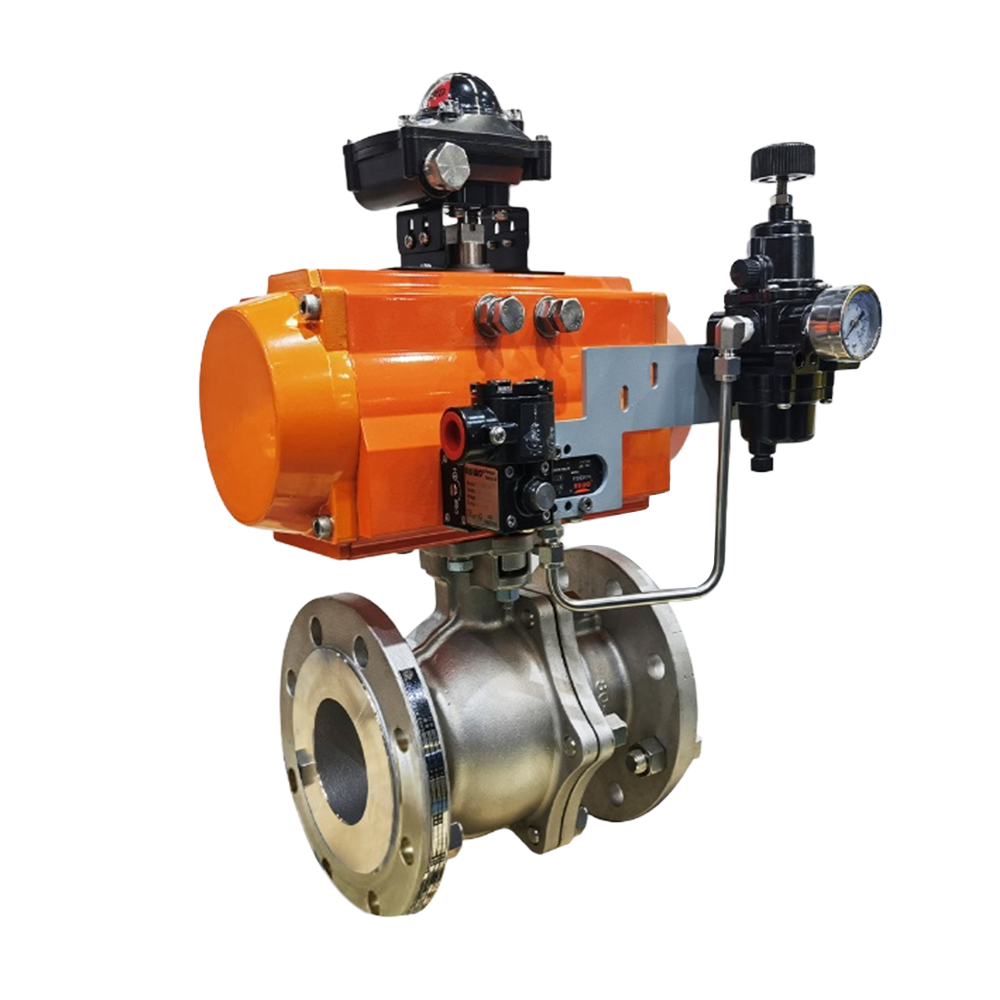

Working condition
| Pressure Rating | CLASS 150 ~ CLASS 1500 (PN 10 ~ PN 260) |
| Nominal Size | NPS ½ ~ NPS 16 (DN 15 ~ DN 400) |
| Seat Leakage Class | ANSI FCI 70-2 CLASS VI and above |
| Applicable Media | Gas Phase |
| Operating Temperature | ≤ 220 °C (≤ 428 °F) |
| Actuation Cycles | 100,000 ~ 1,000,000 cycles per year |
| Actuation Speed | Typically 1 ~ 3 seconds (Faster speeds available upon request) |
| Fire-Safe & Anti-Static | Support |
| Operation | Pneumatic, Electric, Hydraulic，etc. |
Pain Points and Proposal
1. External Leakage: packing wear due to frequent opening/closing without any compensation, finally external leakage occur.
2. Jamming:
① soft material seat wears due to frequent high-speed operation, making sealing surfaces rough and causing jam.
② valve bearings waers due to long-term rapid cycling, increasing surface roughness and get jamming.
3. Internal Leakage:
Soft seat wears on surfaces due to frequent high-speed operation, results in internal leakage.
1. Self-Adjusting Packing:
Precision wear compensation formula maintains seal integrity.
2. Exclusive Hardened Bearings:
Engineered for enhanced durability under heavy use.
3. Ultra-Low Stress Sealing Surfaces:Minimizes wear on critical sealing components.
4. Constant Light-Touch Compensatio

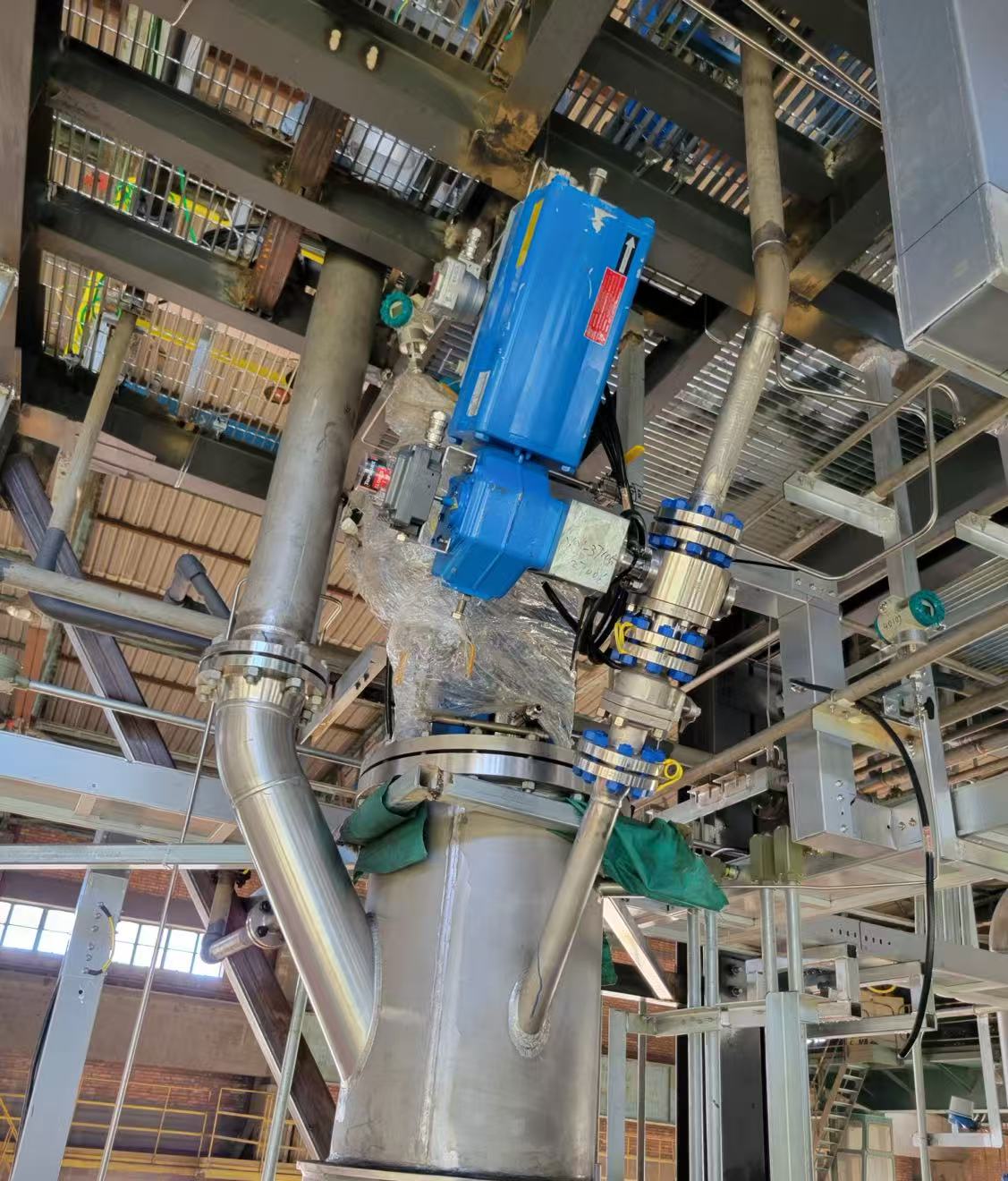

Reference
-
● Supplied 6 valves (NPS 1-1.5, Class 600) rated for 500,000 annual cycles
● Operational since November 2023 - Zero issues to date, cycle life surpassing 500,000
