Interchangeable = Reliable
Intermixable and interchangeable of same size balls/seats, high reliability;
Special alloy coating on sealing surface with no "biting" even under 550°C condition;
Anti-deformation seat design to prevent valve jamming;
Zero leakage under 60-minutes pressure testing after fully degreasing and decontamination!

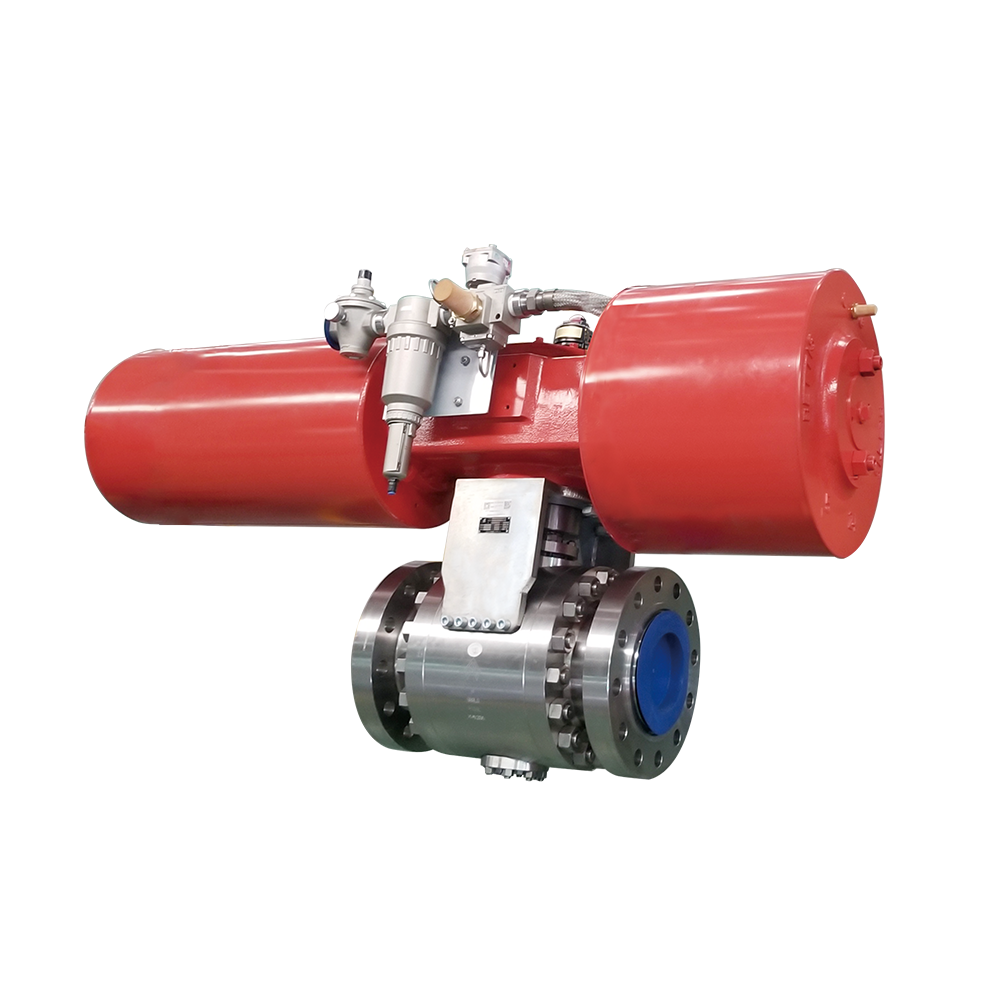

ATW's alloy coating proposal has completely overcome the technical problem of metal to metal "biting" in high-pressure, high-temperature, ultra-pure gas fluid and degreased applications. It features smooth opening and closing without jamming, fire-proof and anti-static design, and meets or exceeds the request of FCI/702 Class VI leakage standard under long time running.
Parameter
| Pressure Rating | CLASS 150~CLASS2500（PN10~PN420） |
| Nominal Diameter | 1/2〞~48〞(DN15~DN1200) |
| Temperature | -46℃~500℃ |
| Body Material | F304，F316，Monel，Inconel，Incoloy,etc. |
| Ball Material | F304/F316/Monel/Inconel/Incoloy+H.F,etc. |
| Seat Material | F304/F316/Monel/Inconel/Incoloy+H.F,etc. |
| Operation | manual, pneumatic, electric, hydraulic, etc. |
Application

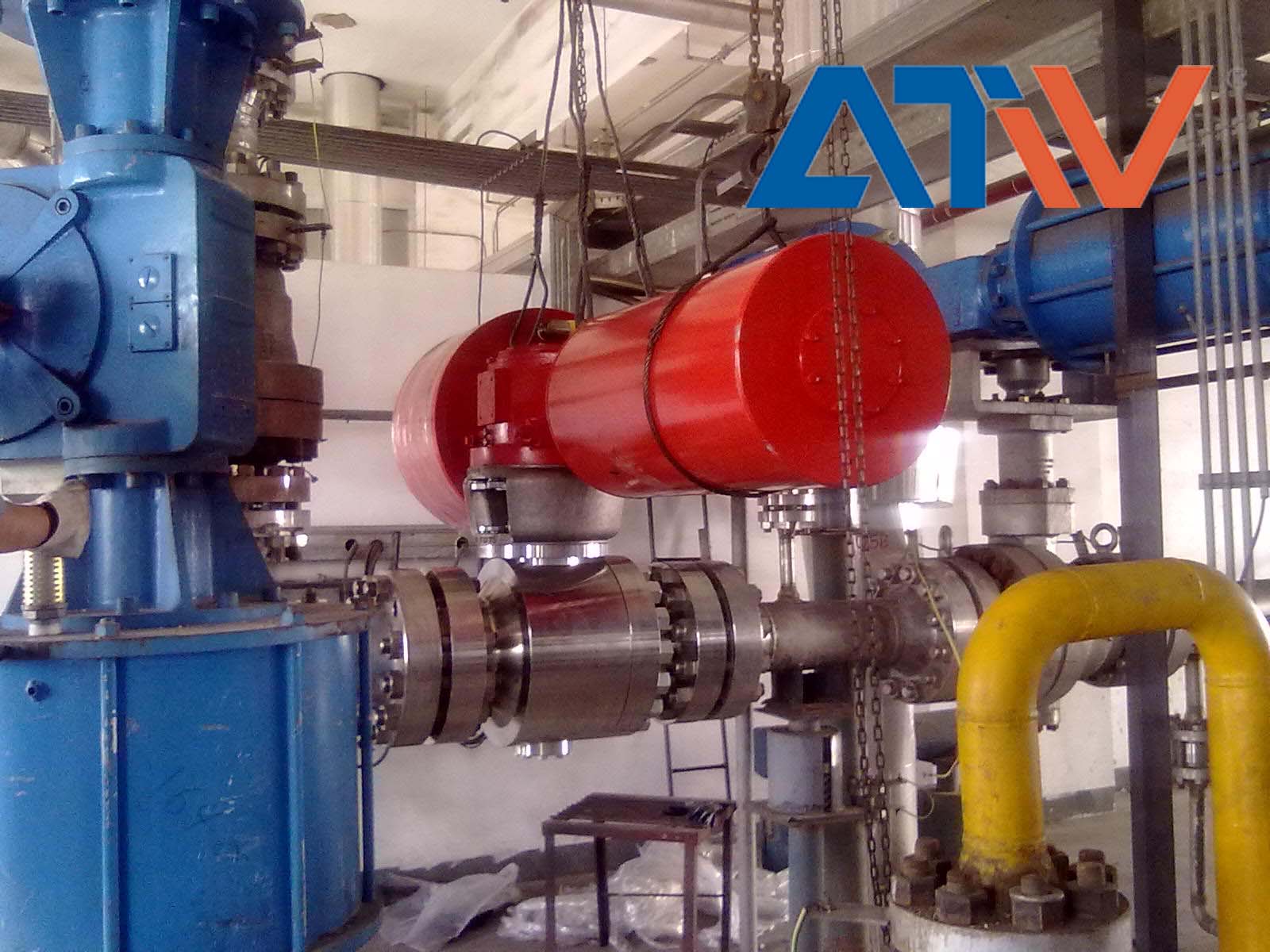

- Application: Coal chemical process: GE-Texco gasification
Size: DN200/Pressure rating: CLASS 1500Medium: High-purity oxygen/Operating temperature: 250°C/Material: INCONEL 625/Differential pressure: 12 MPa/Cycle time: <2 seconds/Service life: >5 years- Application: Coal chemical process: GE-Texco gasification
