Leakage Rate ≤ 1/100 of BS6364

No wear od energy storage ring deisgn ensures long-term low internal leakage rate, less than 1/100 of BS6364;

Asymmetric spring design decreases stress, extending service life;


ATW's LNG ball valve is developed from advanced technologies and it features of excellent sealing performance, high sealing reliability, good wear resistance and long service life under ultra-low temperature comparing with other suppliers' products. In particular, ATW's LNG ball valves are developed basing on plenty of tests and research, have completely solved problems such as internal and external leakage, valve jamming, thus featuring strong safety, stability and reliabiliity.

Parameter

Pressure Rate Class 150~Class1500(PN10~PN260)
Nominal Diameter DN15~DN300•NPS0.5~NPS12
Temperature -196℃~-110℃
Ball Material F304,F316,duplex,Hastelloy,Inconel,Monel,Ti,904L,Incoloy,F304/F316/duplex/Hastelloy/Inconel/Monel+H.F,etc.
Seat Material PCTFE, CT-200
Operation manual, pneumatic, electric, hydraulic, etc.

Application

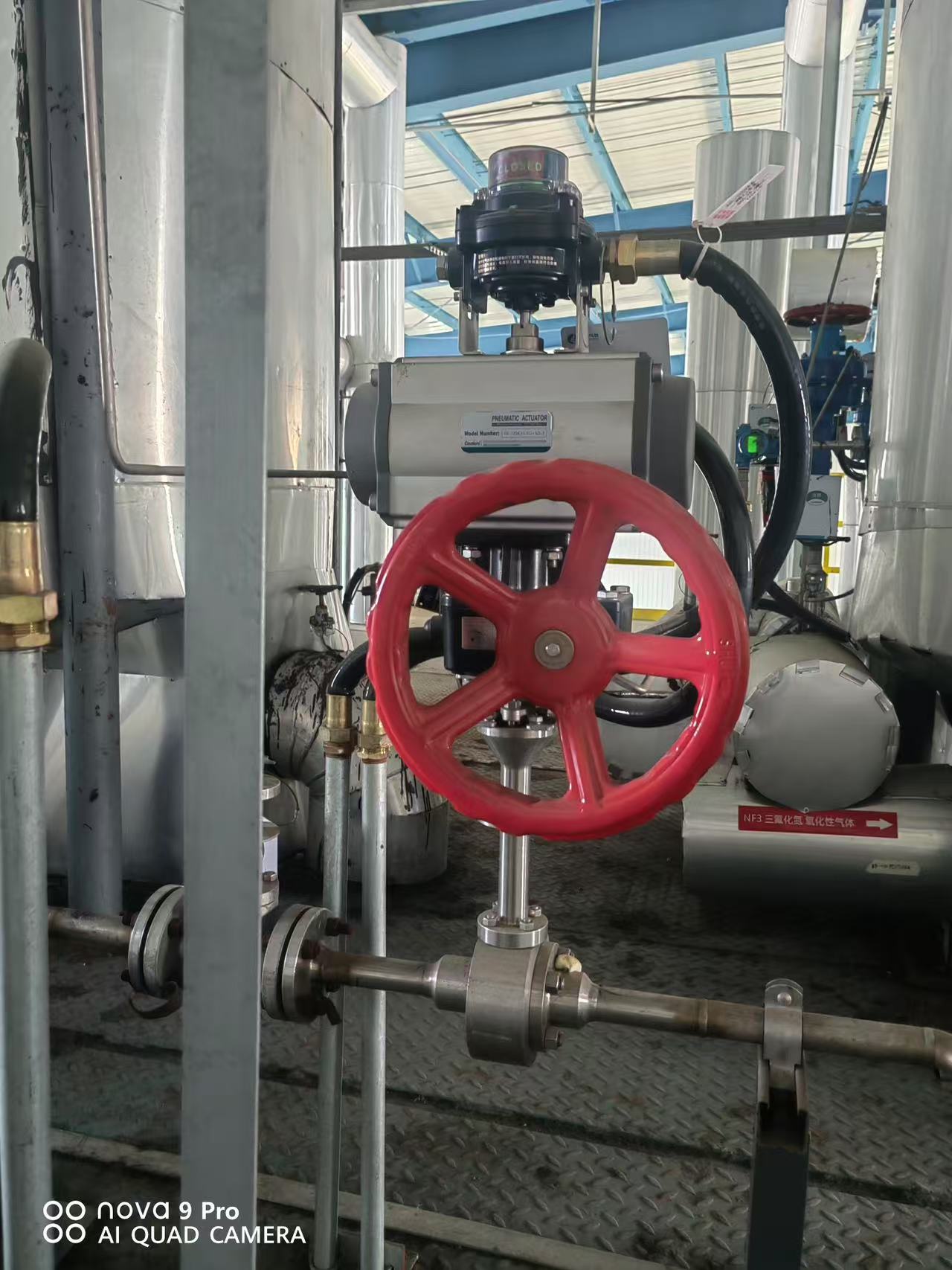

  • Case:Hydrofluoric Acid Service Valves
    Case:Hydrofluoric Acid Service Valves
    – 30 Units in Continuous Operation for 14 Months
