Small sealing surface size Means Low Torque

Zero leakage — both internal & external leakage;

Flexible seat design reduces operating torque;

Quantitative compression design ensures all parts' stress below allowable limits to control cold flow of soft material.

Seat is high-performance polymer material with felxible seat design and ball is hardened.

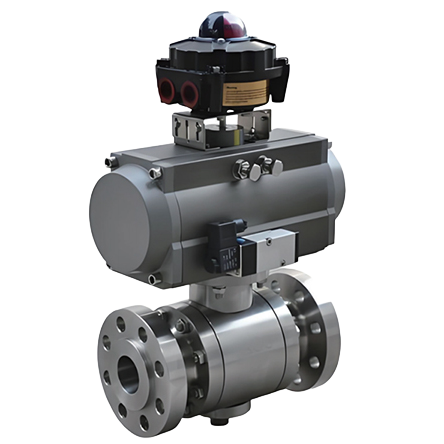

Combining the characteristics of high-pressure working conditions, ATW has developed high-pressure soft-sealed ball valves with optimzing structure through extensive tests and research.

Parameter

Pressure Rate PN100 ~ PN260 • Class600 ~ Class1500
Nominal Diameter DN15 ~ DN600 • NPS0.5 ~ NPS24
Temperature -50℃~220℃
Ball Material F304,F316,duplex,Hastelloy,Inconel,Monel,Ti,904L,Incoloy,F304/F316/duplex/Hastelloy/Inconel/Monel+H.F,etc.
Seat Material RPTFE, TFM1700, M111+CF, DEVLON, PEEK
Operation manual, pneumatic, electric, hydraulic, etc.

Application

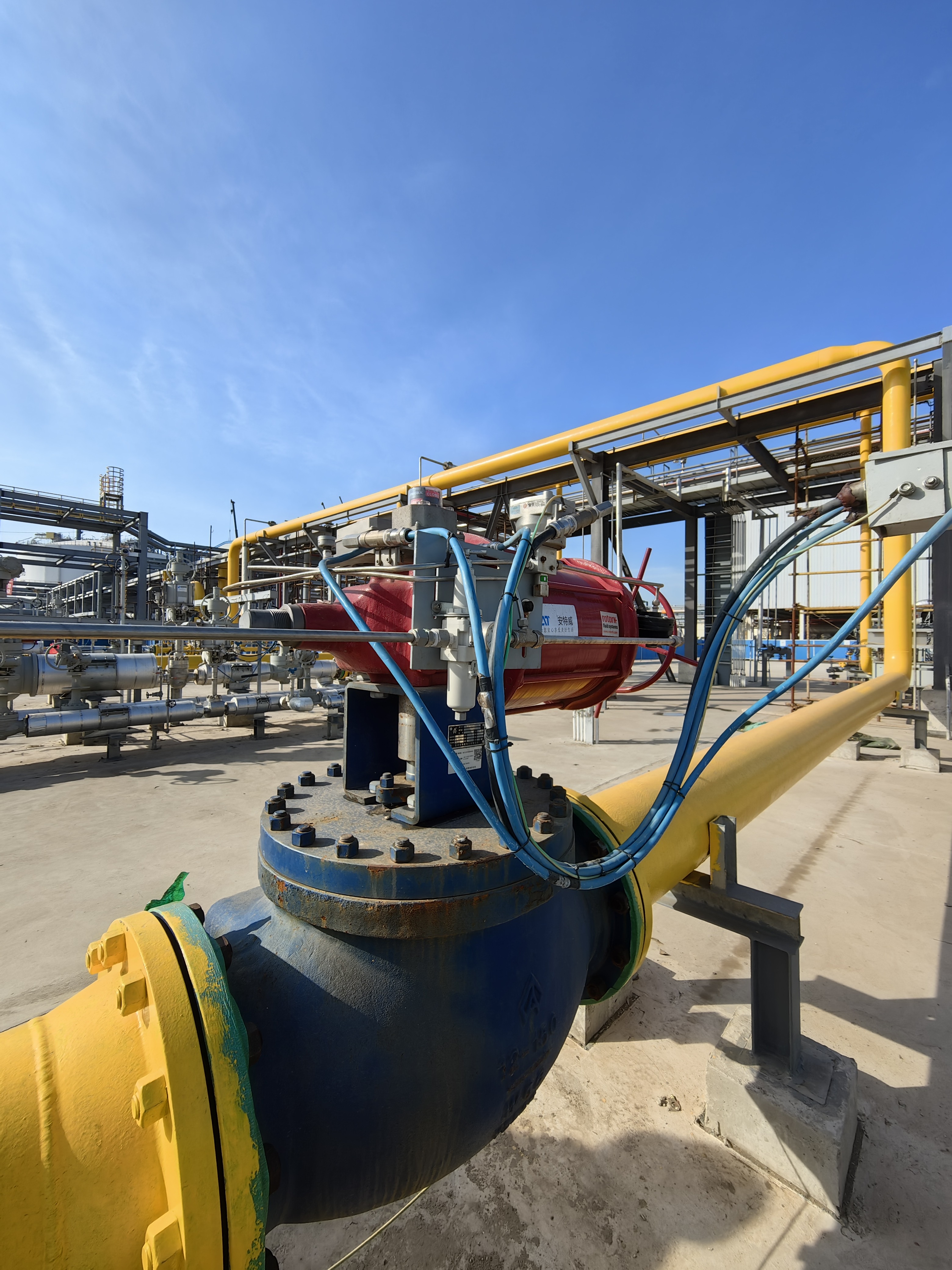

  • 8-1500, Pneumatic High-Pressure Soft-Seated Ball Valve
    8-1500, Pneumatic High-Pressure Soft-Seated Ball Valve
    National Pipeline Network Group Tianjin Liquefied Natural Gas Co., Ltd.
