Overview
Parameter
Application

High band width ratio = long service life

Low torque, rapid operation, long service life;

Full pressure differential at bi-directional sealing, high reliability in high pressure conditions;

Build high pressure material deformation mathematical model to ensure no leakage and jamming under high pressure.

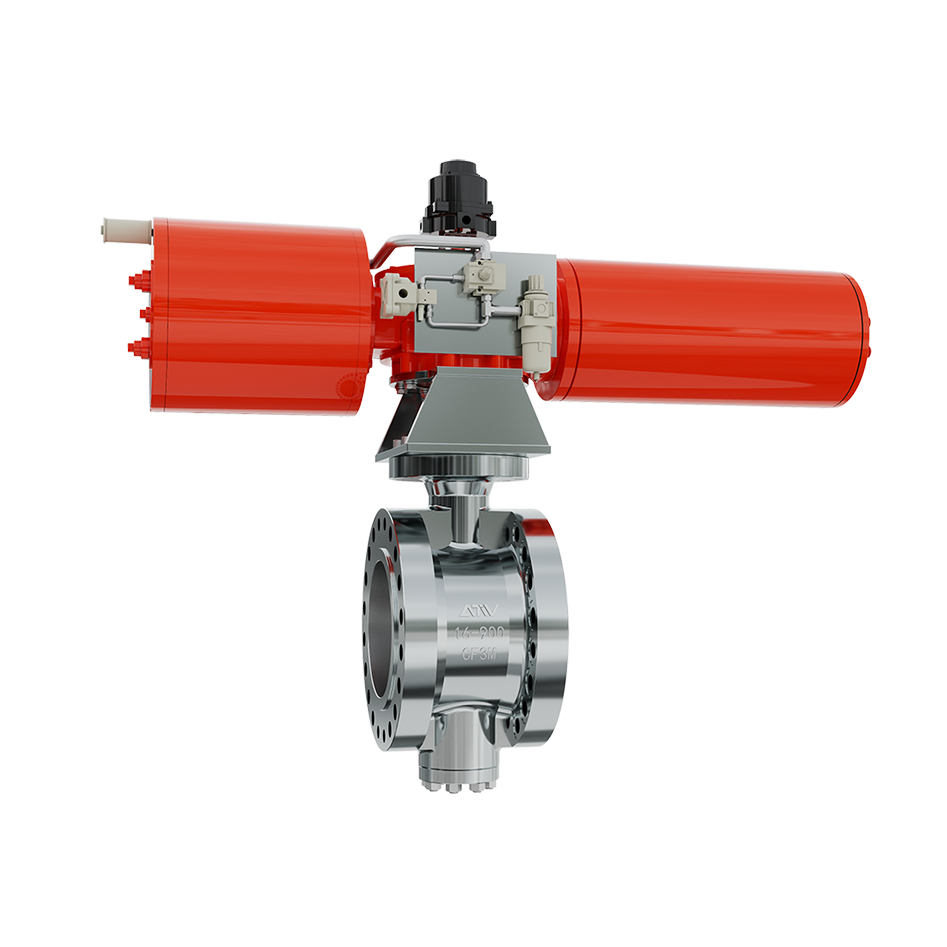

Antiwear's high pressure butterfly valves can work with long service life and easy maintenance online. Based upon high pressure material deformation mathematical model and lots of tests, ATW builds mathymatical model of matterial deformation in high pressure. Comparing with other suppliers' similar products, ATW's high termperature butterfly valves exhibit excellent sealing performance with no valve jamming due to material deformation in high pressure.

Parameter

Pressure Rating Class900-Class1500、PN150-PN250
Nominal Diameter NPS3-NPS48、DN80-1200
Temperature Range -50~425℃
Main Material A216 WCB,A351 CF8,A351 CF3M
Spherical Material 316L+FG,2205,304/316+STL
Valve Seat Material 304/316+STL
Operation Mode

Application

  • Shaanxi Changqing Energy Chemical Co., Ltd.
    Shaanxi Changqing Energy Chemical Co., Ltd.
    Process: GE-TEXCO gasificationFluid:syngasDescription: replace import brand valve and more than 5 years online life with no maintenance
