High band width ratio = long service life

Low torque, rapid operation, long service life;

Full pressure differential at bi-directional sealing, high reliability in cryogenic service conditions;

“Gap" design based upon thermodynamic mathematical model to ensure no leakage and jamming under high termperature.

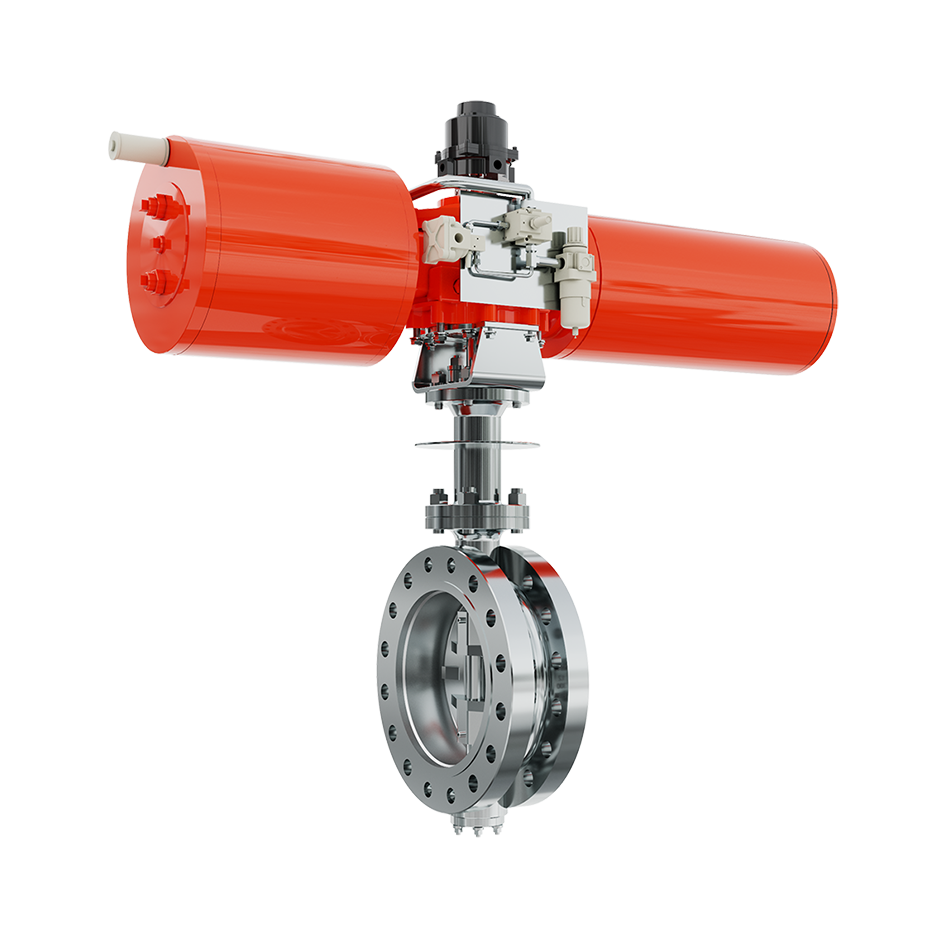

Antiwear's high termperature butterfly valves feature with intrinsic fire-proof design, can work with long service life and easy maintenance online. Based upon thermodynamic mathematical model and lots of tests, ATW builds mathymatical model of matterial deformation in high temperature. Comparing with other suppliers' similar products, ATW's high termperature butterfly valves exhibit excellent sealing performance with no valve jamming.

Parameter

Pressure Rating Class150-Class1500、PN10-PN250
Nominal Diameter NPS3-NPS48、DN80-1200
Temperature Range 425℃~704℃
Main Material A216 WCB,A351 CF8,A351 CF3M
Spherical Material XM-19+STL
Valve Seat Material 304/316+STL
Operation Mode

Application

  • Anqing Taiheng Chemical Technology Co., Ltd.‌‌
    Anqing Taiheng Chemical Technology Co., Ltd.‌‌
    Process:Lummus catofin processFluid:regenerationg airDescription: High temeprature gas condition, ATW's valve has more  than 4 years online life with no maintenance
