Working condition
| Process | Axens Para Max process |
| Size | NPS1~12 |
| Pressure Rate | CLASS 150~300 |
| Fluid | C8A and p - diethylbenzene |
| Temperature | 200℃ |
| Valve body raw materiall | A105 |
Pain Points and Proposal
1.Jam: valve jam due to solid fluid accumulating inside valve pocket, serious cycle time request, accuracy less than 0.1 second.
2. Internal leakage: wrong coating of sealing surface.
3.External leakage: stem packing failuer without any compensation after frequenctly on/off operating.
1.Valve flow channel is machined to ensure the roughness does not exceed Ra3.2. The valve pocket is designed with a drain port, which allows for regular release of deposited materials.
2.Special coating for solid-liquid phase with good features on hardness and corrosion.
3.Real live-loaded packing design with real time wear compensation of packing.

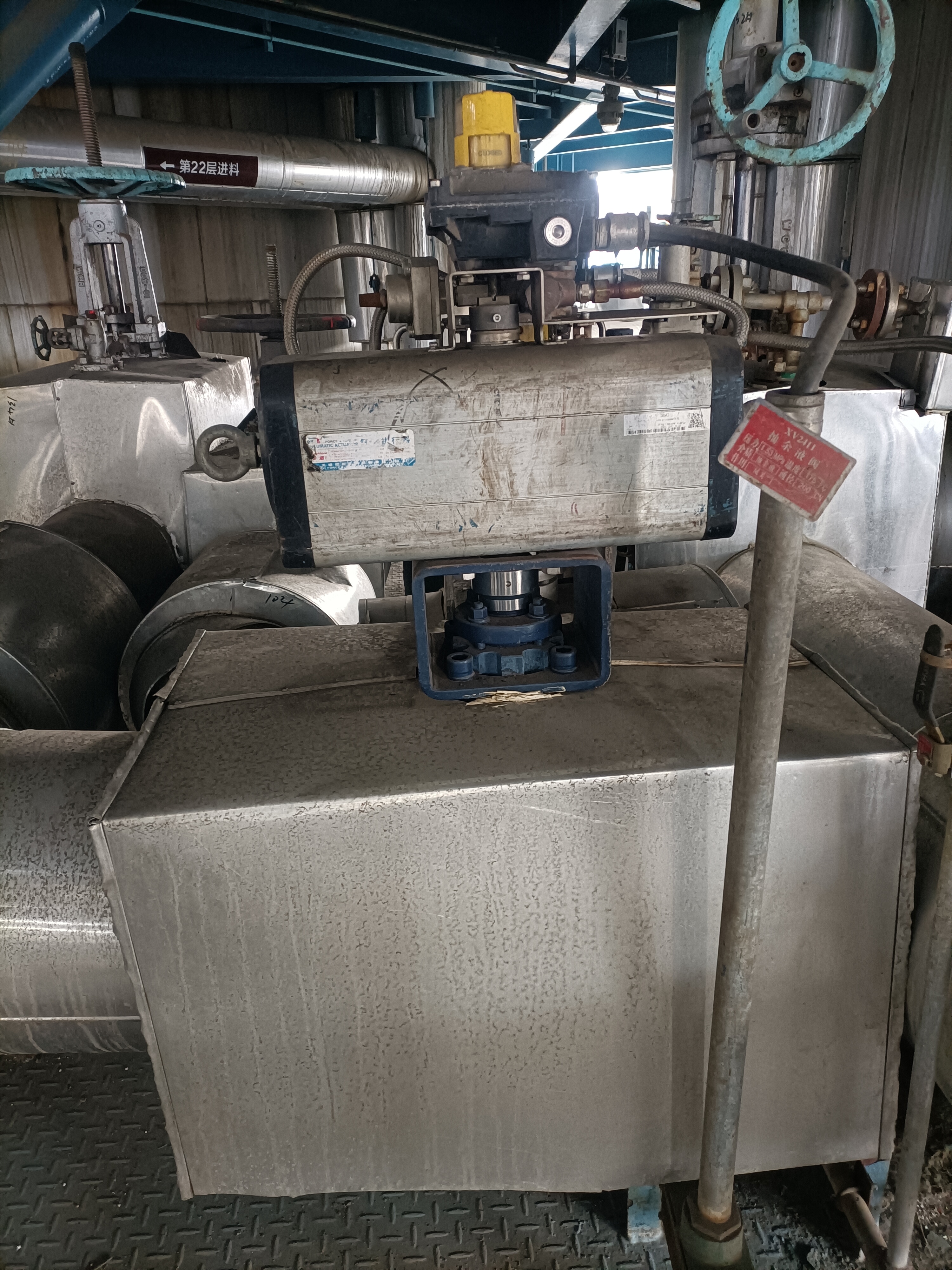

Reference
-
Sinopec Zhenhai Refining& Chemical Branch Company
Process: Axens Para-Xylene Process
Size: NPS 2
Pressure Rating: CLASS 150lb
Fluid: C8A + p-Diethylbenzene
Temperature: 200°C
Body Material: A105
