Overview
Parameter
Application

Quick on/off Means Long Service Life

Making Fluid Control Systems Simpler and More Reliable

Different alloy coatings for critical challenging operating conditions;

Low torque, quick on/off, decreasing erosion;

Bow shape groove ball design to reduce fluid velocity and decrease erosion;

Balls/seats fully intermixable and interchangeable to ensure high reliability


Ball valves are compact and reliable shut-off valves widely in almost all industries. However, under extreme service conditions, conventional soft-seated designs perform not good. Challenging condition such as high-temperature or high pressure fluids, abrasive/corrosive medium, and crystallization-prone substances can rapidly destroy soft sealing surface. Metal-seated ball valves provide an effective solution. Even in the most severe services — including high-pressure/temperature (HPHT) systems, high-frequency cycling, and abrasive slurry transport — ATW's valves can ensure: - Low-friction with consistent torque - Long service life - Reliable internal and external sealing performance

Parameter

Pressure Rating CLASS 150~CLASS900(PN10~PN260);
Nominal Diameter 1/2〞~48〞(DN15~DN1200);
Temperature Range -46℃~300℃;
Body Material Carbon Steel,Stainless Steel,duplex ,Hastelloy,Inconel,Monel,Ti,904L,Incoloy,Zirconium alloys, etc.
Ball/seat Material A105+ENP,F6a,F304,F316,duplex,Hastelloy,Inconel, Monel,Ti,904L,Incoloy,F6a/F304/F316/duplex / Hastelloy /Inconel/Monel +H.F, etc.
Drive mode manual, pneumatic, electric, hydraulic, etc.

Application

  • Coal Chemical Industry

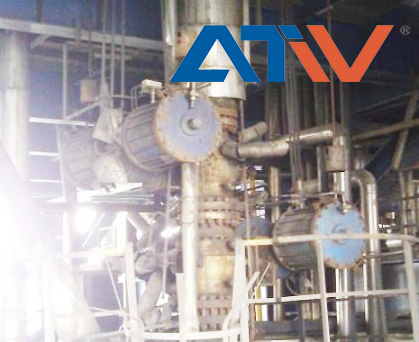

    Coal Chemical Industry
    Product: Locking Ball ValveProcess: GE-Texco GasificationSize: DN350Pressure Rating: CLASS 600lbMedium: SlurryOperating Temperature: 180°CMaterial: WCBSwitching Frequency: 2–3 times/hourService Life: >3 years
  • Case 2 Application: Petrochemical
    Case 2 Application: Petrochemical
    Size: DN300Pressure Rating: CLASS 900 lbOperating Temperature: 387°CMedium: SteamMaterial: WC6Service Life: >2 years
  • Case 1 Application: Petrochemical

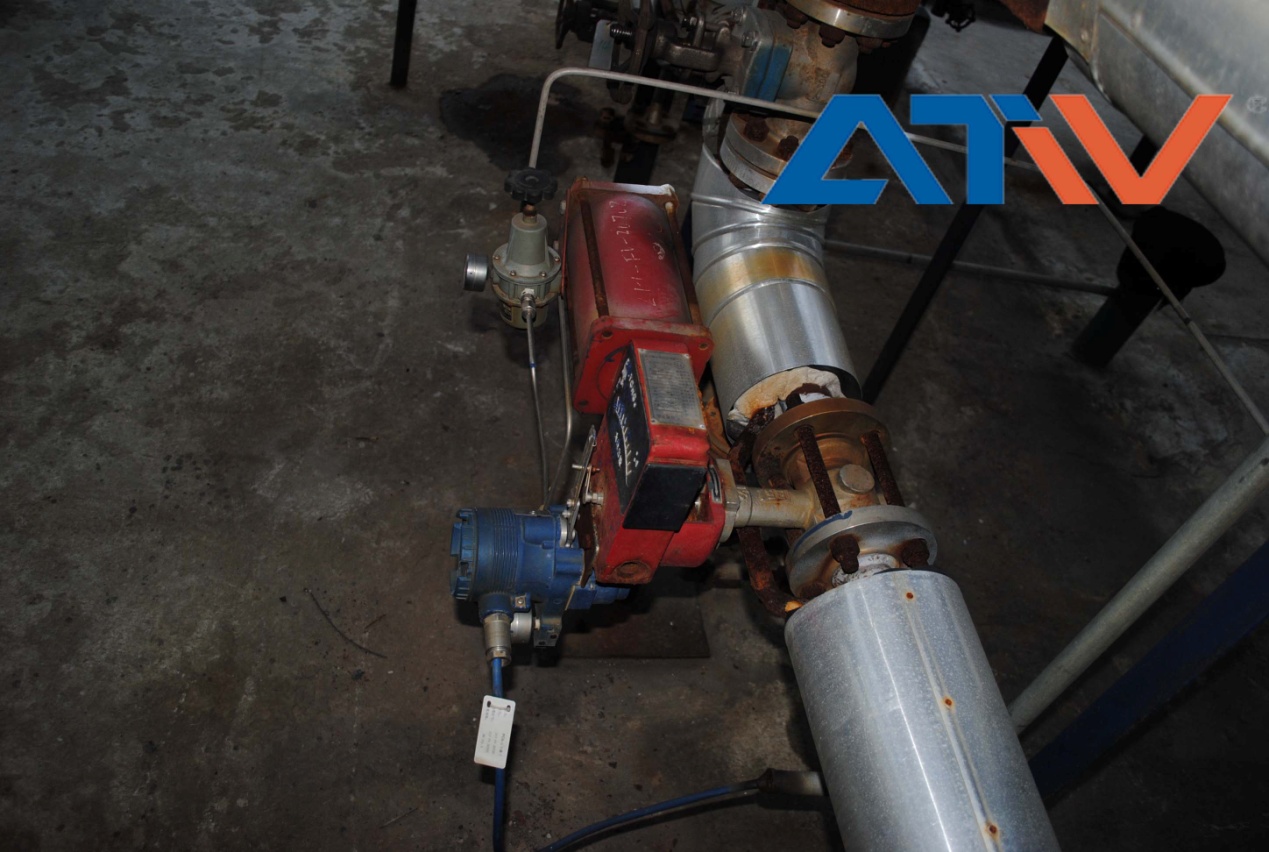

    Case 1 Application: Petrochemical
    Size: DN50 Pressure Rating: CLASS 300lbOperating Temperature: 120℃ Medium: SteamMaterial: WCB Service Life: >2 years
