Crystalized-proof metal seated ball valve
×
Consult
Working condition
| Pressure Rating | CLASS 150-900 (PN 10-160) |
| Nominal Size | NPS ½"–12" (DN 15-300) |
| Sealing Standard | ANSI FCI 70-2 Class VI or higher |
| Applicable Media | crystalline or precipitating medium |
| Temperature Range | -50°C to +425°C |
| Operation Method | Pneumatic、Manual、Electric、 Hydraulic |
Pain Points and Proposal
1.While the valve fails to open or close fully, the medium adhering to the surfaces of the ball and valve seat prevents the formation of a good sealing.
2.When slurry enters the spring pocket, crystalline deposits block the spring, causing the spring to fail and lose its ability to provide preload for the valve seat, resulting in internal leakage of the valve.
Crystalized-proof metal seated ball valve

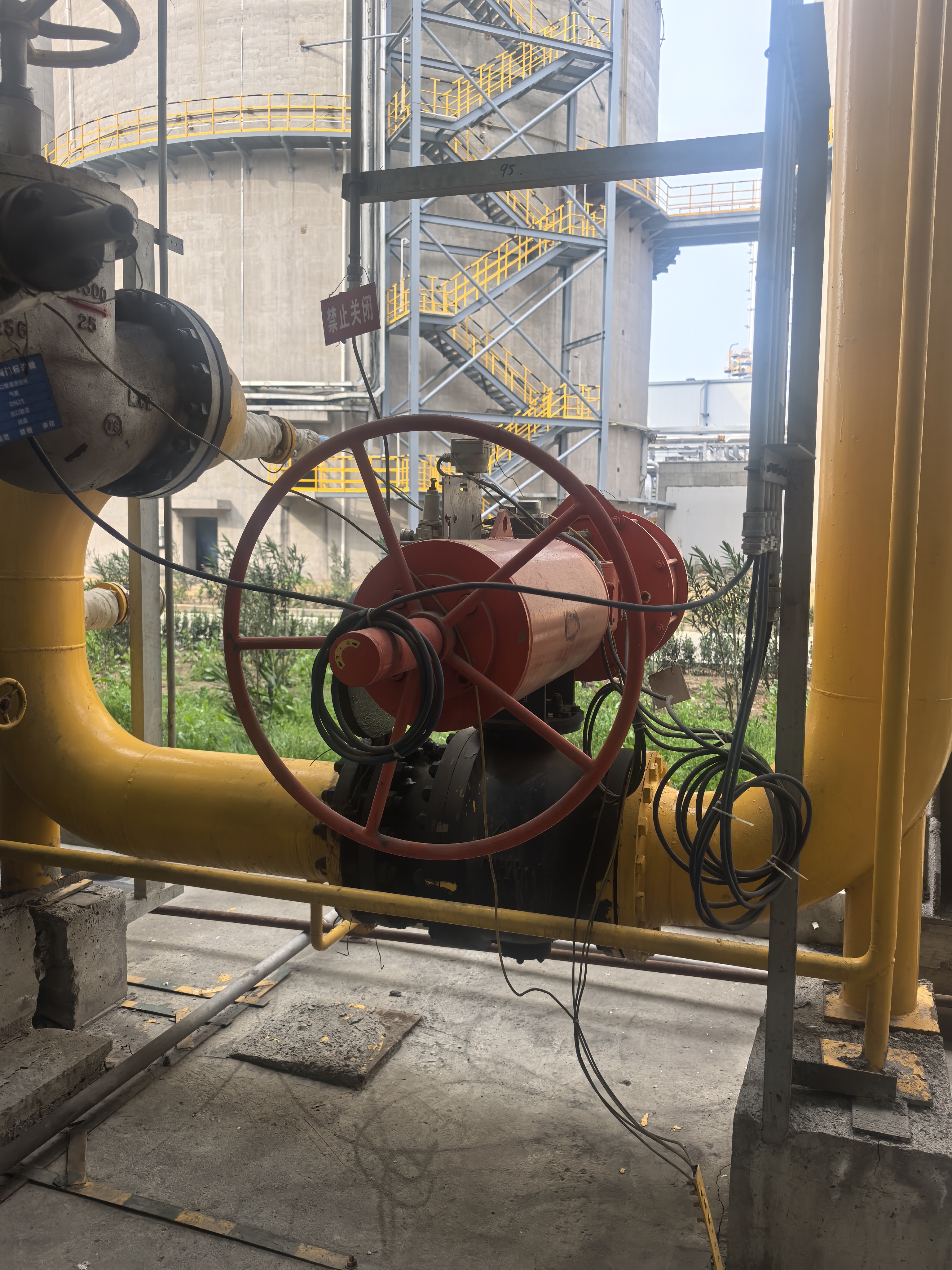

Reference
-
Henan Jindadi Chemical Co., Ltd.
Process：soda ash process
Size: DN200
Pressure Class: PN16
Medium: Ammonia Mother Liquor
Material: 4A
