Blow back valve
Working condition
Pain Points and Proposal
Reference
Consult

Working condition

Pressure RatingCLASS 150 to CLASS 1500 (PN 10 to PN 260)
Nominal SizeNPS 1.5 to NPS 8 (DN 40 to DN 200)
Seat Leakage ClassANSI FCI 70-2 CLASS VI or higher
Applicable MediaGas phase
Temperature RatingUp to 300°C
Cycling Life≤200,000 cycles per year
Stroking Speed200 milliseconds
Actuation MethodPneumatic

Pain Points and Proposal

1. External Leakage: The bellows develops external leakage after high frequently cycling.

2. Internal Leakage:

After high-frequency cycling, the valve seat damaged, resulting in internal leakage.

1.One-piece extended bellows, a purely imported product, features a compression-type bellows design, which effectively enhances the spring recovery capability when the valve is closed and reduces the spring recovery time.

2.Strict welding quality control ensures a secure connection between the bellows and valve trim.

3.A high sealing specific pressure design prevents high-speed metal-to-metal impacts, ensuring zero leakage under long time working.

4.The valve seat is made of high-strength engineering plastics material, ensuring both strength and toughness.

5.Imported bellows ensure concentricity with the valve stem.

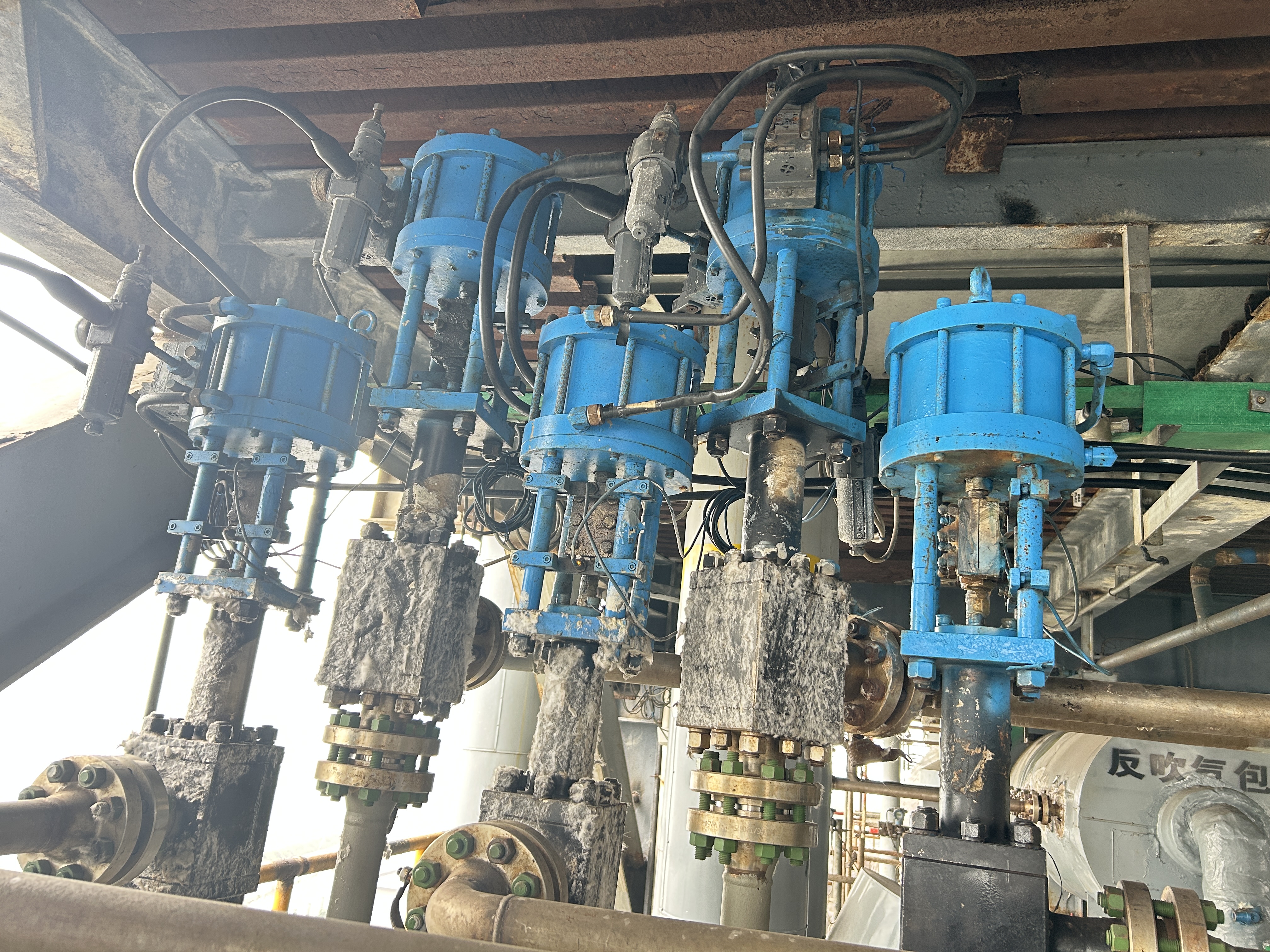

Reference

  • Size: DN 50
    Pressure Rating: CLASS 300 lb
    Medium: N₂
    Temperature: 250°C
    Material: F316
    Opening/Closing Time: <0.2 s
