Low Torque Means Long Service Life

Making Fluid Control Systems Simpler and More Reliable

Low torque means long service life,Antiwear challenges the lowest operating torque record in history;

Full pressure differential at bi-directional sealing, under any pressure and temperature;

Seat and disc rings are intermixable and interchangeable with high reliability.

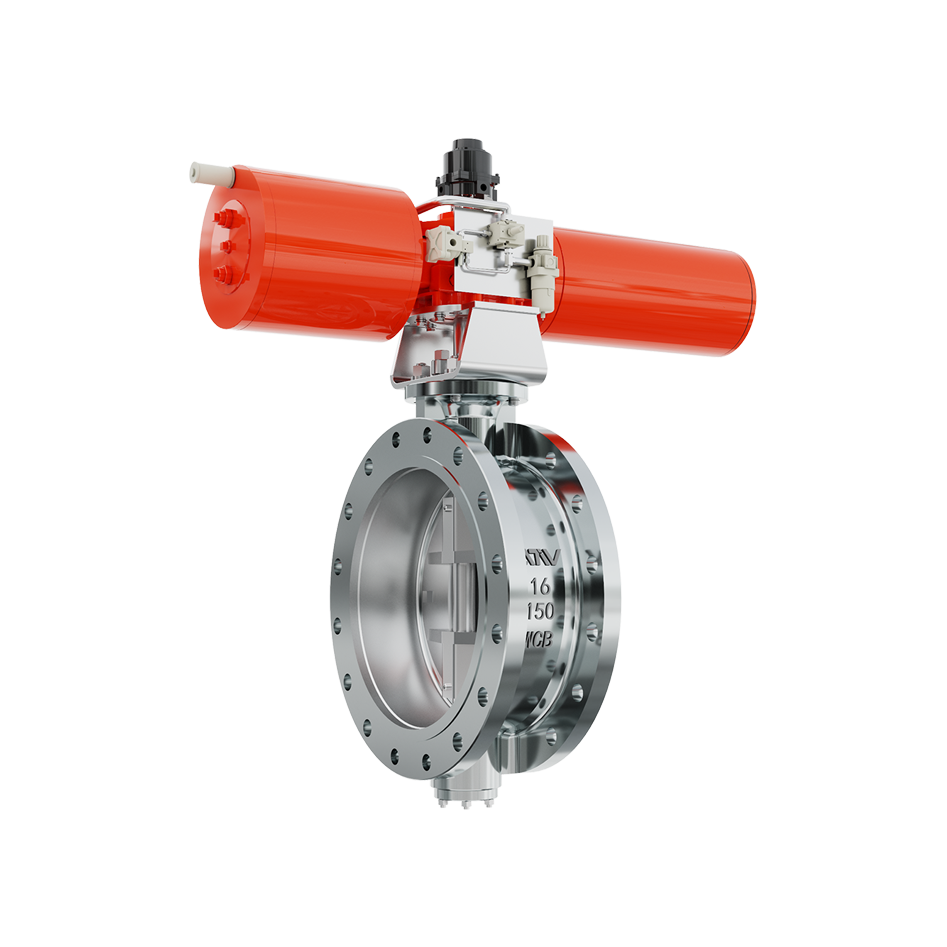

Triple-offset butterfly valves offer advantages including compact size, rapid operation and low cost, with expanding applications across chemical processing, tank farms, terminals, utility systems, and municipal infrastructure. However, there're many problems of leakages, short service life, and high cost maintenance. Upon these problems ATW's triple-offset butterfly valve has below features: 1.Low torque means long service life, ATW challenges industry's lowest torque record! 2.Full pressure differential at bi-directional sealing, under any pressure and temperature; 3. Seat and disc rings are intermixable and interchangeable with high reliability.

Parameter

Pressure Rate CLASS 150~ CLASS 1500 (PN10~PN260)
Nominal Diameter 3〞~160〞 (DN80~DN4000)
Temperature -196℃~850℃
Body Material carbon steel, stainless steel,duplex ,Hastelloy,Inconel, Monel,Alloy20,Incoloy,Ti ,etc.
Disc Material carbon steel, stainless steel,duplex ,Hastelloy,Inconel, Monel,Alloy20,Incoloy,etc. Seat Material:PTFE,EPDM-A,stainless steel,STL Alloy,etc.
Operation Handle,Pneumatic,Electric,Hydraulic,etc.

Application

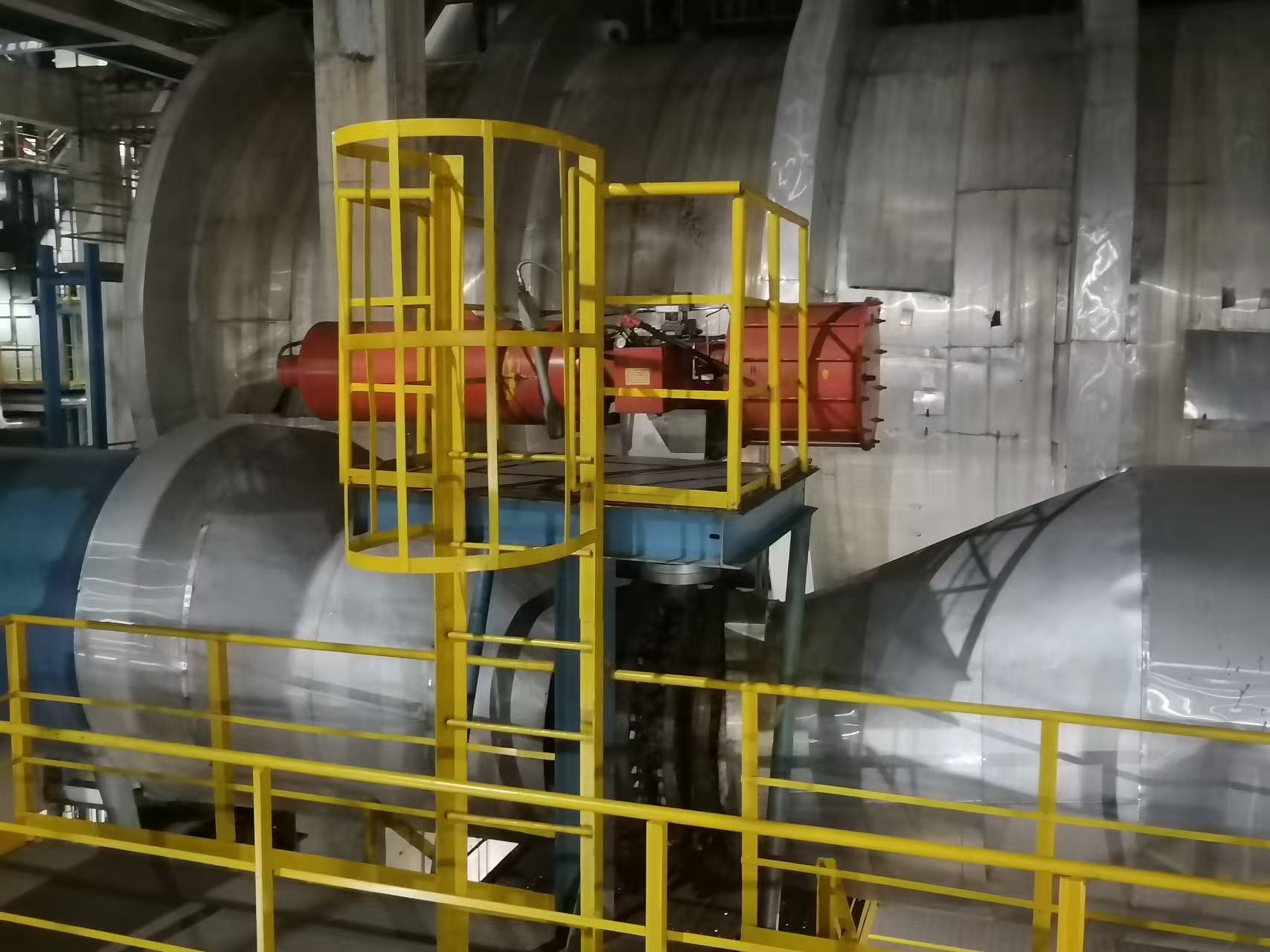

  • Case: Anqing Taiheng New Material
    Case: Anqing Taiheng New Material
    Unit: Propane DehydrogenationValve Specification: NPS 40, Class 300Operating Temperature: 150°C–260°CCommissioning Date: April 2021

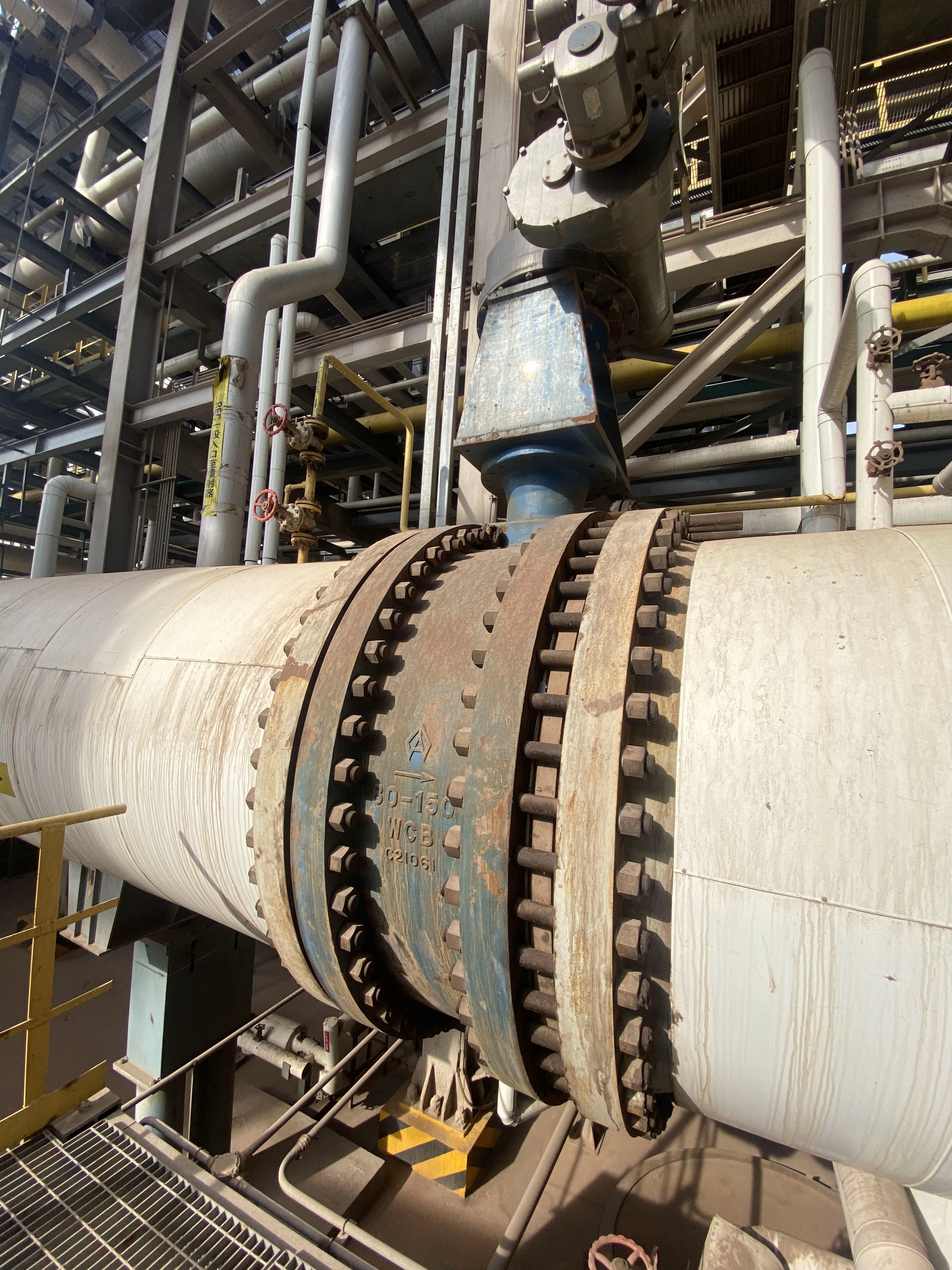

  • Case:Shandong Binhuaxin Materials
    Case:Shandong Binhuaxin Materials
    Unit: Propane DehydrogenationValve Specification: NPS 80, Class 150Operating Temperature: 185°CCommissioning Date: November 2022

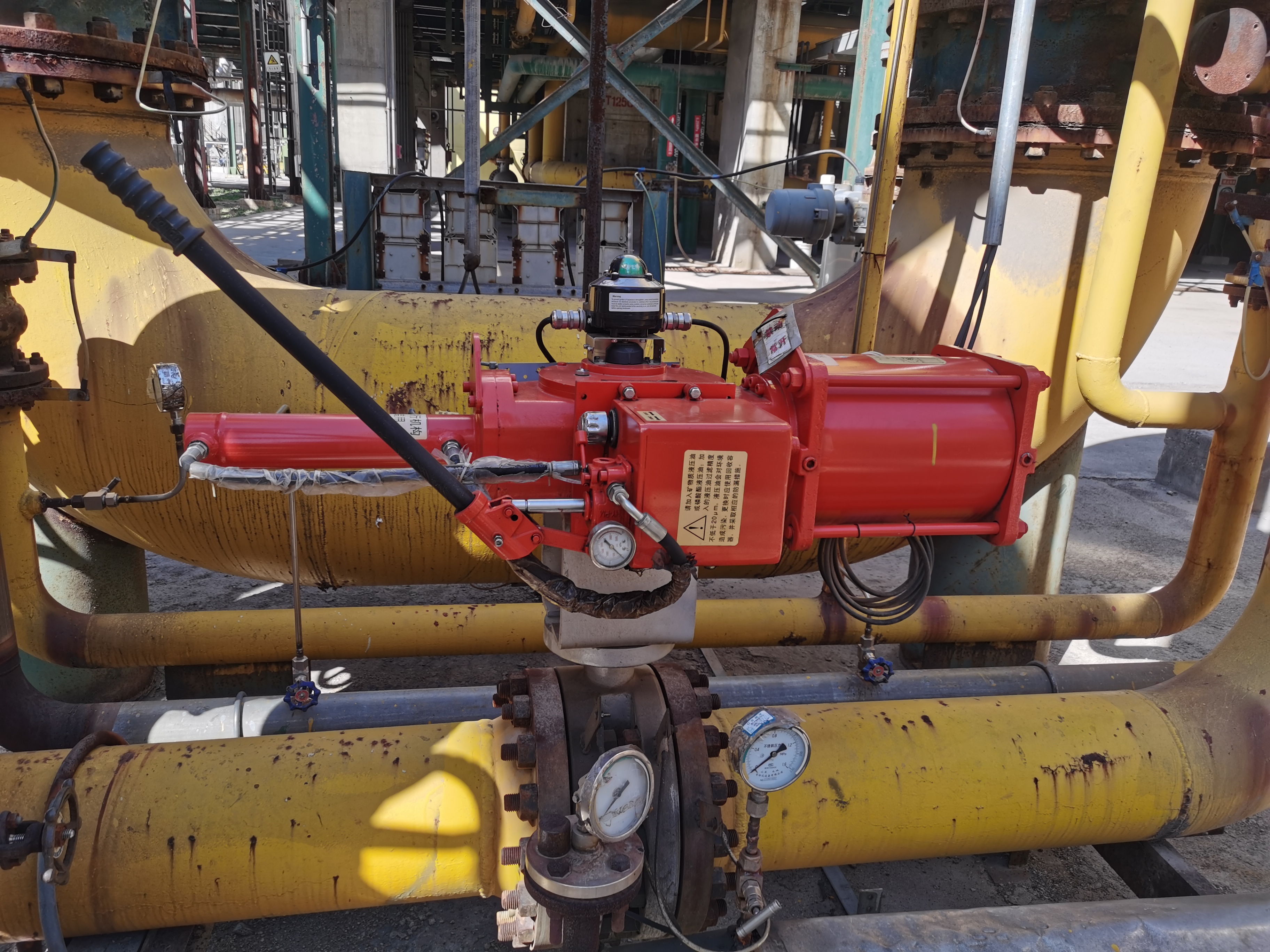

  • Case: Zhongyuan Dahua
    Case: Zhongyuan Dahua
    Unit: Pressure Swing Adsorption (PSA)Valve Specification: NPS 16, Class 300Operating Temperature: 40°CCommissioning Date: October 2019

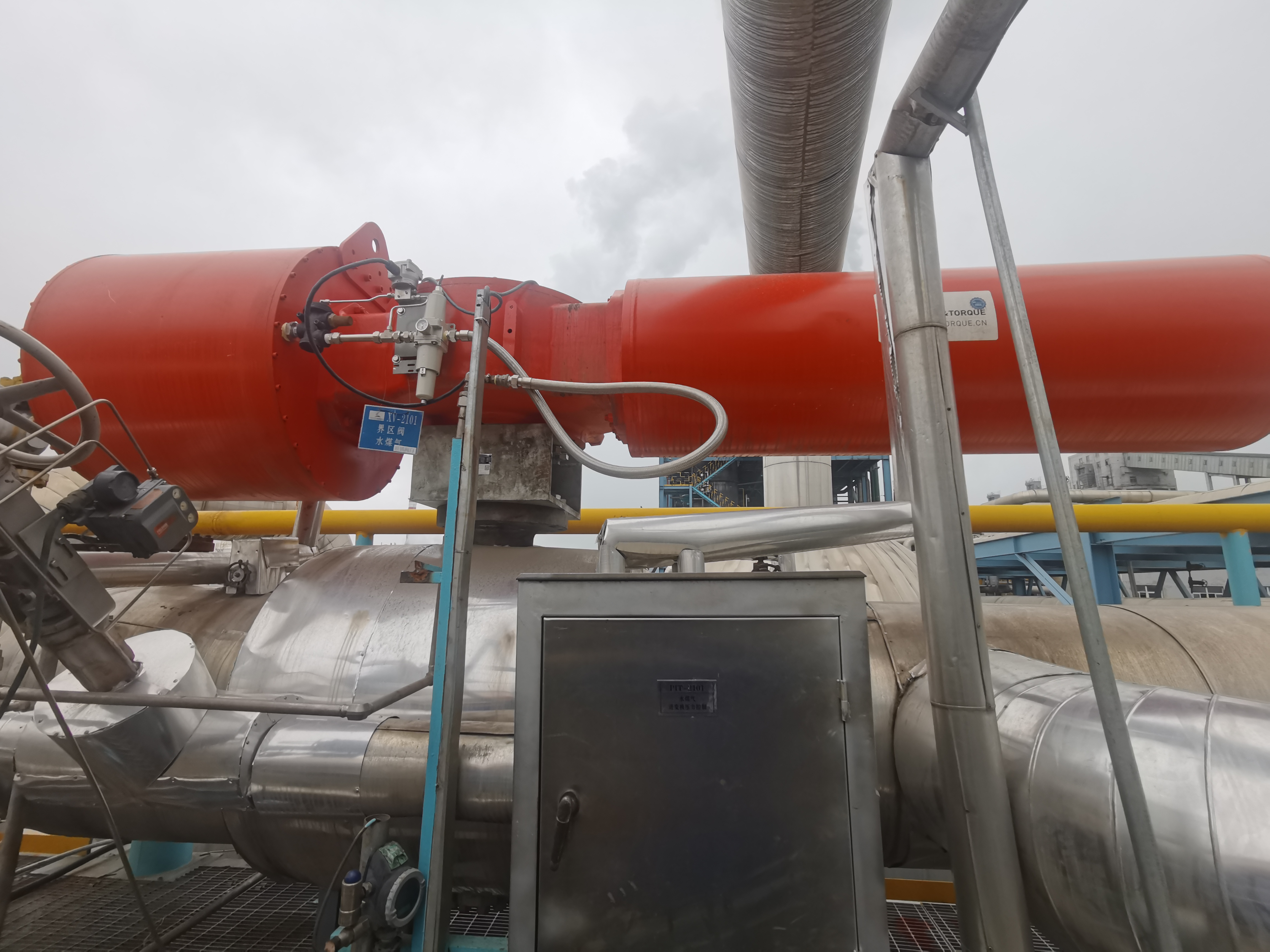

  • Case:Shaanxi Changqing Energy
    Case:Shaanxi Changqing Energy
    Unit: Syngas PurificationValve Specification: NPS 28, Class 900Operating Temperature: 275°CCommissioning Date: March 2021
