Continuous self-rotating disc, longer service life

Full-stroke self-rotating disc;

New tracking design eliminates disc "biting" tracking, ensures never jamming ;

High rigidity design, completely resolves internal/external leakage under pipeline stress conditions

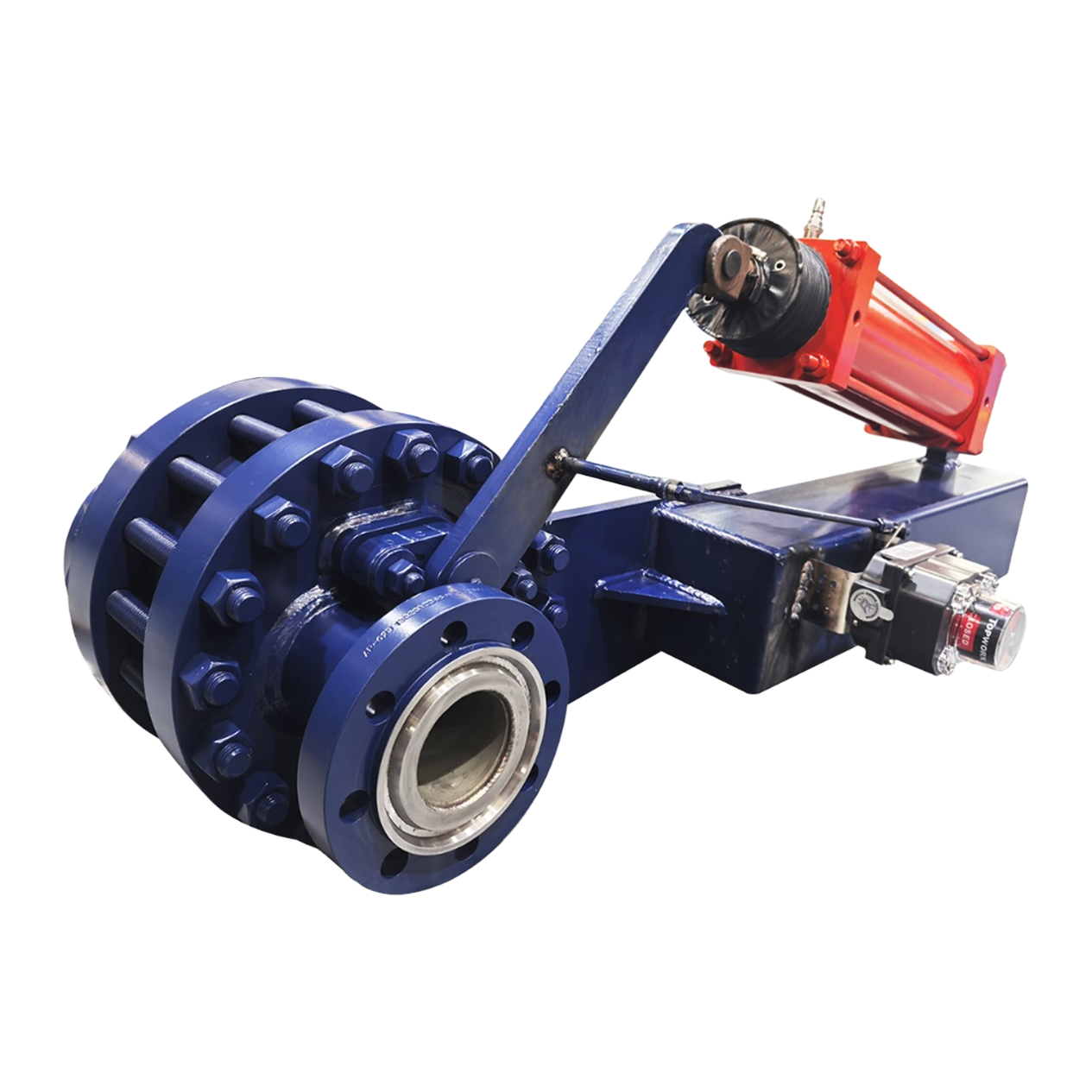

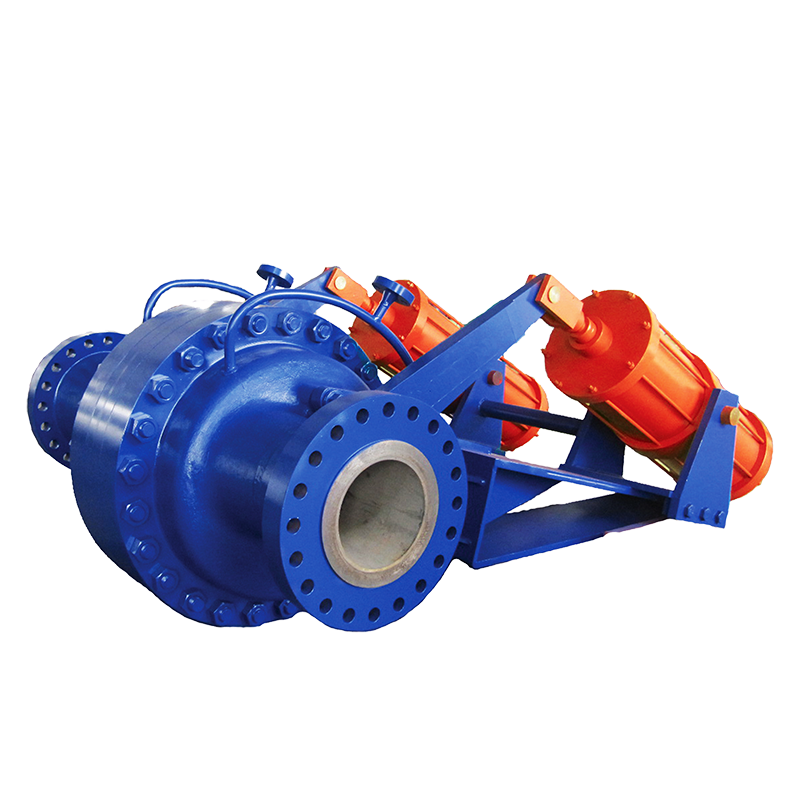

Rotating disc valve is a kind of quick open/close valve through a rotating disc. It is special designed for abrasive and erosive medium, it can be operated properly and continuously in severe condition for very long time. The self-rotating and milling disc/seat function of its particular hard sealing face allows its tightness to be improved increasingly during the application with abrasive and erosive materials, making its service life much longer than that of other valves. Therefore, when you feel tired about replacing your valves frequently, you should consider using disc valves as your first option. Its performance will exceed your expectation.

Parameter

Pressure Rate Class150-Class900(PN10-PN160)
Nominal Diameter 1-24
Temperature -50℃-700℃
Body Material carbon steel, stainless steel,Inconel, Incoloy,etc.
Disc Material F304/F316L/F310S/F51/Incoloy+H.F,Hard Alloy,etc.
Seat Material F304/F316L/F310S/F51/Incoloy+H.F,Hard Alloy,etc.
Operation pneumatic

Application

  • Application: Silicon Chemical Industry
    Application: Silicon Chemical Industry
    Size: DN50Pressure Rating: CLASS 300lb / Operating Temperature: 300°CMedium: Liquid SiHCl₃, Silicon PowderMaterial: A105Switching Frequency: 1-2 times per hour
