Oxygen service ball valve
×
Consult
Working condition
| Pressure Rating | CLASS 150 to CLASS 1500 |
| Nominal Size | NPS ½ to NPS 16 |
| Leakage Class | ANSI FCI 70-2 CLASS VI or higher |
| Compatible Media | Pure oxygen, nitrogen |
| Temperature Rating | Up to 550°C |
| Cycling Speed | 1-3 seconds (quicker speed available upon request) |
| Fire-Safe & Anti-Static Design | Support |
| Driving mode | Pneumatic, Manual |
Pain Points and Proposal
1. Jam: Under pure, high-pressure, high-temperature, degreased, and dry oxygen/nitrogen/hydrogen service conditions, metal to metal "bite" (micro-welding phenomenon) easily occurs between parts; These phenomena occur on these parts: ball, seat, bearings, bushings, stem, bottom shaft, etc.
2. Internal Leakage:The valve passed factory accetance pressure testing but leakage occurs while running online.
Reference
-

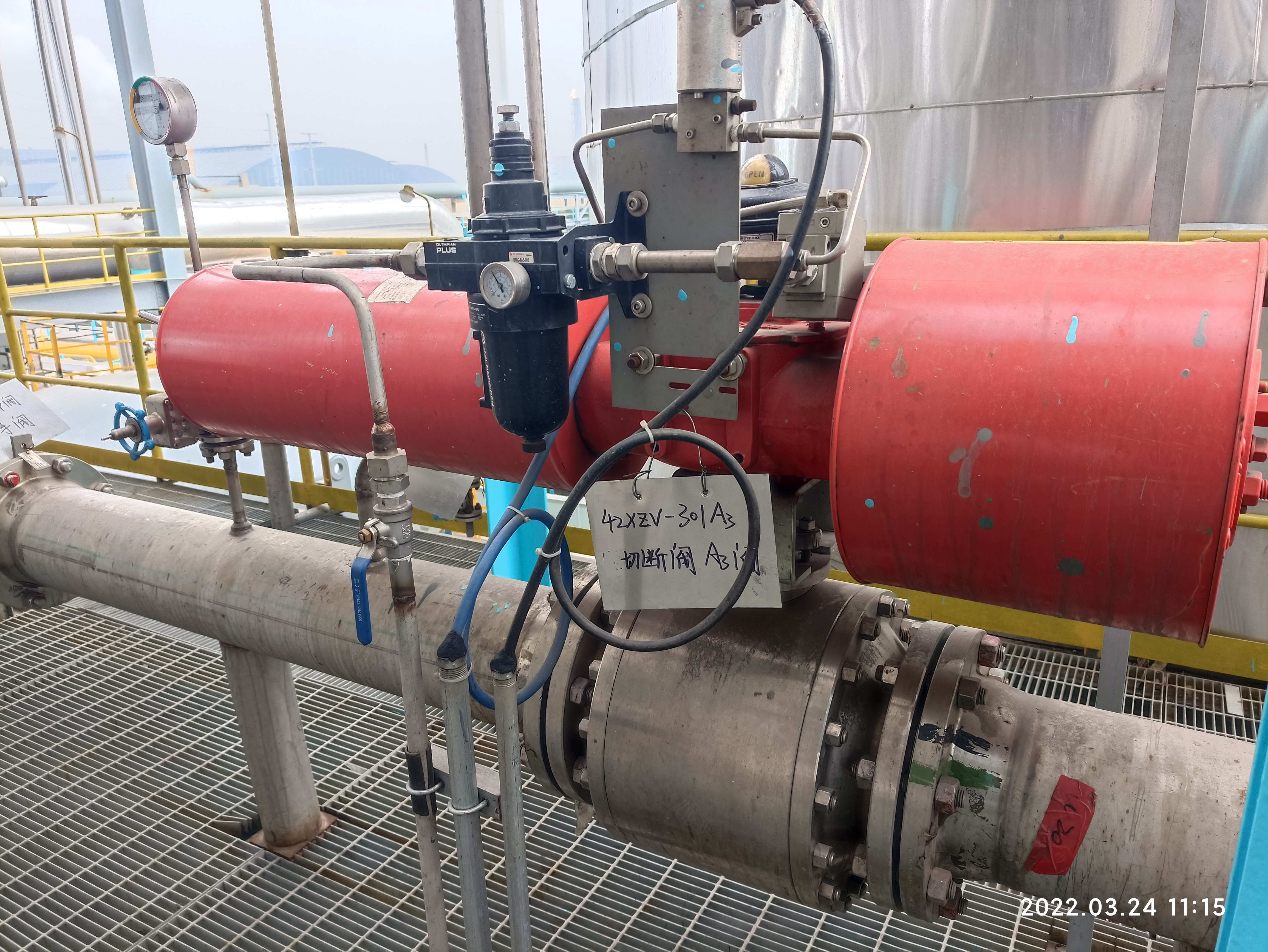

Oxygen Valve for Meijin Coal-to-Ethylene Glycol Unit
