Quick On/Off Means Long Service Life

World's quickest cycling time- PALL certified (Germany);

Ultrasonic dust cleaning function, low purging gas consumption;

Hastelloy material bellows optional for chloride corrosion application;

High-flexible thermoplastic seat material under high tempreture up to 300℃

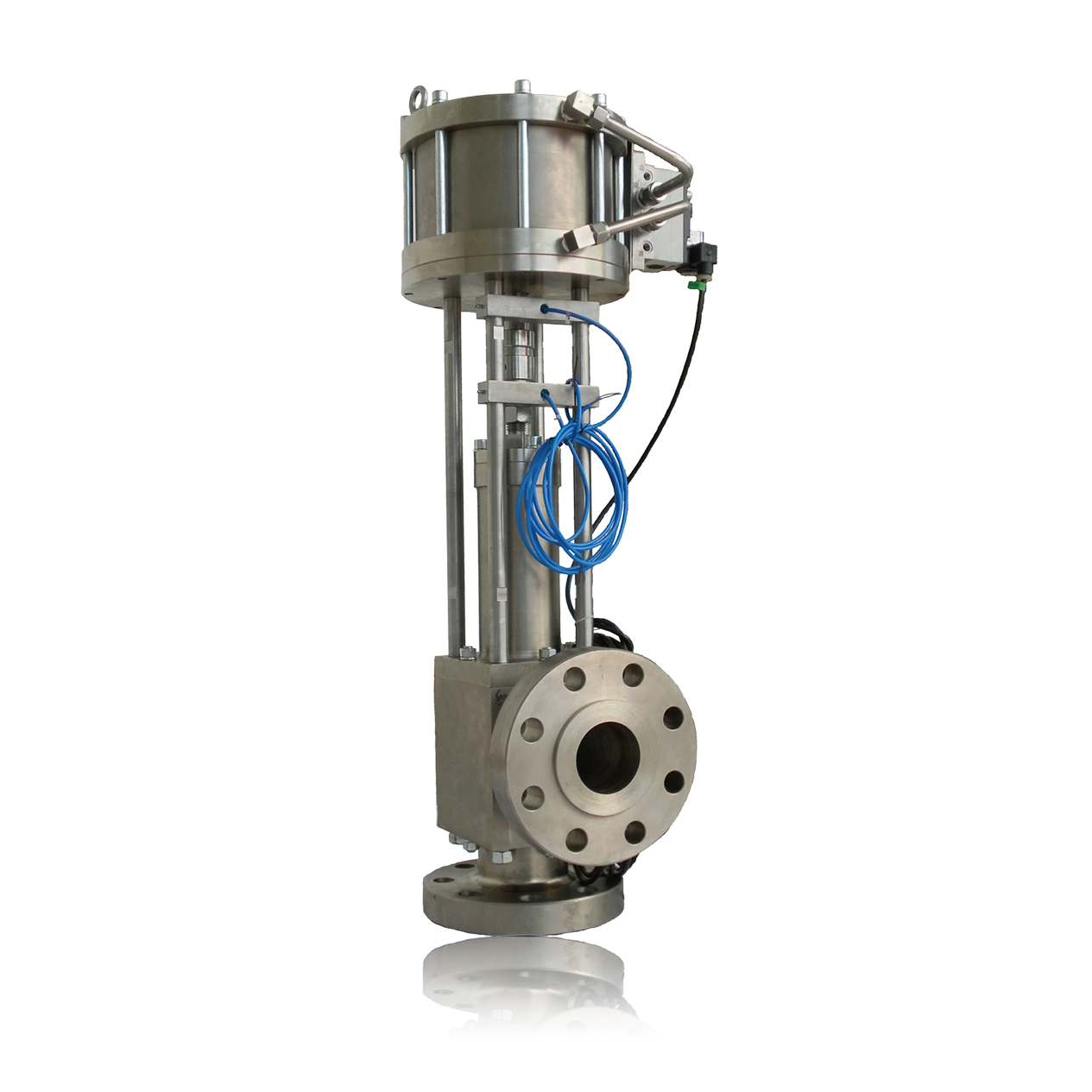

Blow back valves are widely used in dry-filtration systems in many industries to provide high-frequency pulse gas onto ceramic or sintered metal filter rods. This process purges dust on the filters, preventing excessive pressure differentials or even filter rod breakage caused by ash accumulation. ATW's blow back valves feature rapid switching speeds, efficient dust removal, low energy consumption, long service life, and stable, reliable operation.

Parameter

Pressure Rate CLASS150~CLASS 900
Nominal Diameter 2”~6"
Temperature < 300°C
Air Supply Pressure 0.6~1.0 Mpa
Operation pneumatic

Application

  • Process: SCGP Gasification

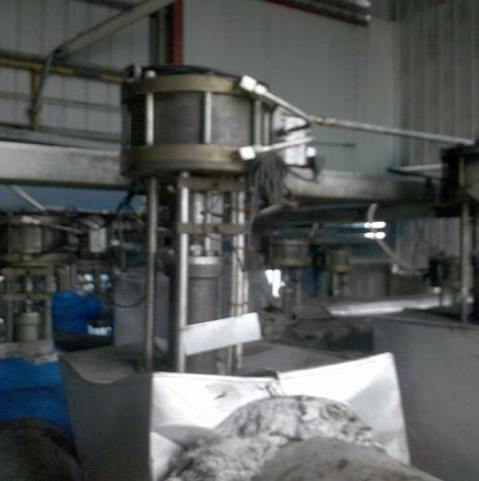

    Process: SCGP Gasification
    Size: DN 80 /Pressure Rating: CLASS 900lbMedium: High-pressure Nitrogen / Temperature: 250°C / Material: F304SSSwitching Frequency: 3-10 times per hour
